How do Electric actuator work for the bellows of 420 square meter sintering machine

Photographer: Jack Xia.

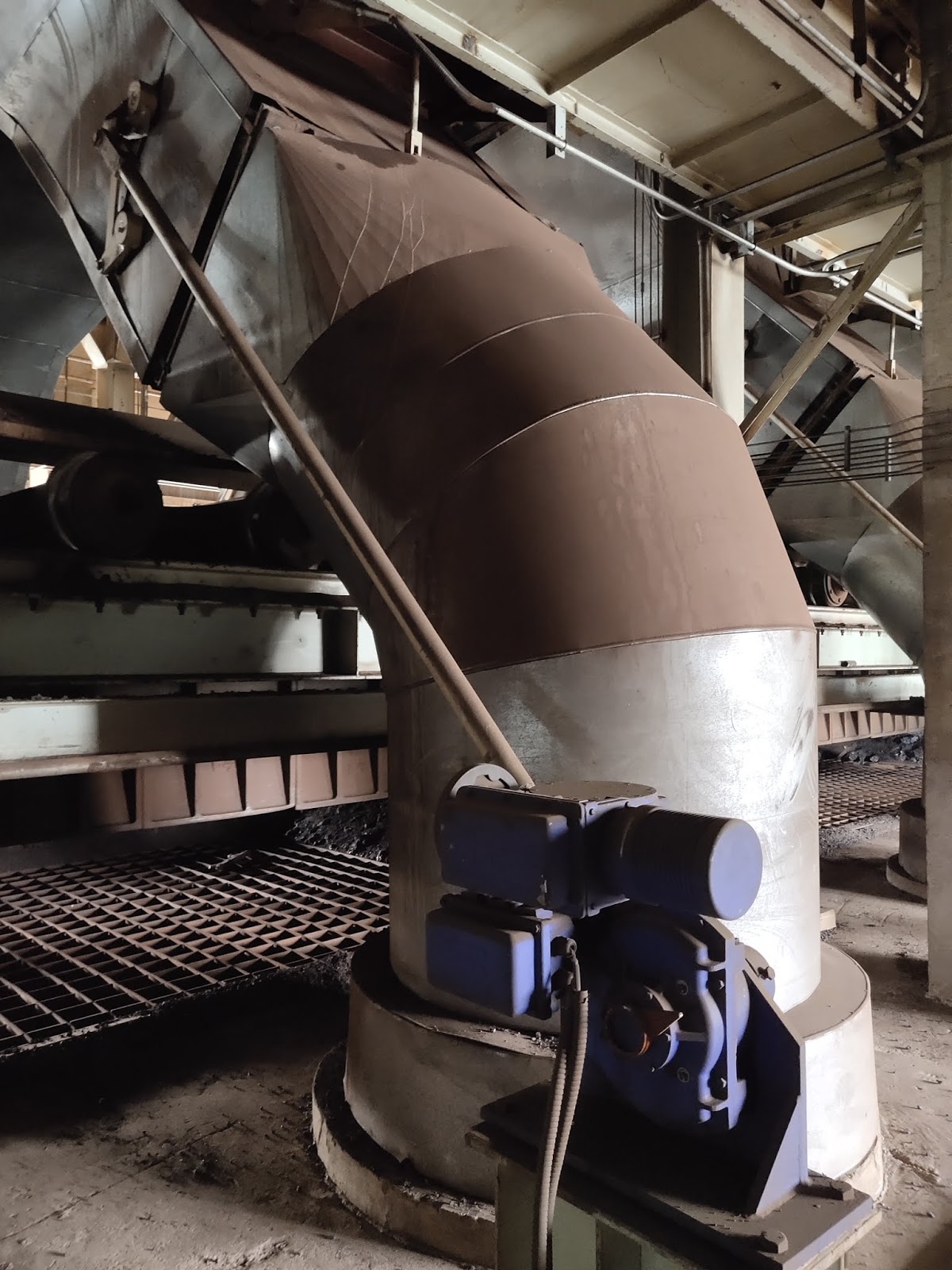

 CHINA.Tianjin BELL electric actuator working scene：420 m2 sintering machine

BELL-400 electric actuator

1 what is sintering:

 Sintering production is to mix the ore, solvent and fuel according to a certain proportion and mix them into particles through the mixer. The sintering is evenly placed on the sintering machine, ignited, and sent to the ring cooler for cooling after sintering. The cooled particles are screened out to be qualified particles, and the qualified particles (sinter) are sent to the blast furnace for smelting.

2 Application of Tianjin BELL electric actuator in sintering

 Tianjin bell actuator bell-400 is used in a 420 square meter sintering machine. It uses the negative pressure generated by the operation of the main exhaust fan to burn the flame ignited on the material layer surface of the sintering machine trolley. As the trolley moves, the mixture on the trolley is burned until the end of smelting.

There are 21 bellows under the sintering machine trolley. The air flow in the bellows can be controlled manually and remotely. When the sintering material on the trolley arrives, the bellows below shall be opened. When the mixture is full on the trolley, the bellows shall be fully opened. Because of the negative pressure state, the combustion layer on the material surface burns down until it reaches the end point of sintering, and the sintering process is over.

 In the past, when the mixture was operated manually, the phenomenon of over burning or under burning often occurred. In addition to wasting the capacity of sintering machine, over burning will also burn the grate of trolley. Under firing results in the decrease of sinter quality.

 Since the use of Tianjin bell actuator, due to the use of PLC automatic control, automatic control of the opening of the bellows, so as to achieve the automatic control of negative pressure air volume. The moving speed of the sintering machine matches with the opening of the bellows, which greatly improves the output of the sinter and the service life of the sintering machine

         For more info:  www.bellauta.com
                  mailbox:   info@bellaut.com
WhatsApp/WeChat: +8613802124431
